Free Flow Top Discharge Air Cooler
Top Discharge Air Cooler
This range of Arctic metal body coolers offer top air discharge with a built in L shaped duct and grill for highly effective spot & focused cooling. This range is extremely effective in dissipating heat in a localised area. Units are portable, powered with a centrifugal blower and with a unique 3 side air intake design the performance is the most superior in the industry.
Features
Top discharge air cooler with a curved scroll and grill
Ductless air Cooler
Free flow metal body
Centrifugal blower for powerful and better air throw
EcoCool evaporative cooling pads inside
Pre coated galvanised steel
Benefits
Increased airflow and cooling due to curved scroll and grill
No ducting involved
Better air management
Easy to Install - Plug and play
Long, trouble-free life compared to cheap imported plastic body coolers
Trusted brand & innovative technology
Ideal for
There are many variations of passages of Lorem ipsum available, but the majority have suffered alteration in some form, by injected humour, or randomised words.
Offices
Schools
Multiplexes
Commercial Complexes
Restaurant
Company Canteens & Kitchens
Shopping Malls
Banquets
Marriage Halls
Gymnasiums
Poultry
Green House & Nursery
Textile Mills
Plastic Printing & Packaging Industry
General Manufacturing facilities
Tea Factories
Ideal for
There are many variations of passages of Lorem ipsum available, but the majority have suffered alteration in some form, by injected humour, or randomised words.
Commercial Facilities
- Offices, Schools, multiplexes & Commercial Complexes.
- Restaurant, Company canteens & Kitchens
- Shopping Malls, Banquets, Marriage Halls
- Gymnasiums
- Residential Buildings
- Paultry
- Green House & Nursery
Industrial Facilities
- Textile Mills
- Automotive Industry
- Plastic Printing & Packaging Industry
- General Manufacturing facilities
- Tea Factories
- Workshops & Warehouses
Range of Products
 |
 |
 |
 |
|
| Model | ATD - 10K | ATD - 20K | ATD - 25K | ATD - 35K |
| Body Material | Special Pre-plasticsized coated galvanished steel | |||
| Minimum Evaporation Efficiency (%) | 80 | 90 | 90 | 90 |
| Pad Surface Area (m2) | 0.85 | 1.56 | 2.17 | 3.74 |
| Pad Thickness (mm) | 60 | 100 | 100 | 100 |
| Connection Load (kw) | 0.19 | 0.79 | 1.55 | 3.88 |
| Power Supply | 230/1Ph/50Hz | 415/3Ph/50Hz | ||
| Overall Dimensions (L x W x H) (mm) | 650x650x1200 | 1150x1150x1450 | 1150x1150x1650 | 1450x1550x2150 |
| All Discharge Grill Size (mm) | 440 x 240 | 600 x 500 | 800 x 500 | 1000 x 600 |
| Fan Type | Axial | Centrifugal DIDW (Double inlet Double Width) | ||
| Tank Capacity (Liter) | 60 | 110 | 110 | 190 |
| Dry Weight* (Kgs) | 62 | 165 | 325 | 595 |
| * Industrial long life construction (heavy duty) | ||||
| Design Guide- SI Units | |||||
| Model | Air Flow (CMH) | Cooling Space/Area (Sq.Ft.) | Throw (meter) | ||
| ATD - 10K | 2500 | 800 | 16 | ||
| ATD - 20K | 8000 | 3000 | 37 | ||
| ATD - 25K | 11000 | 3500 | 42 | ||
| ATD - 35K | 26000 | 5000 | 60 | ||
|
|
||

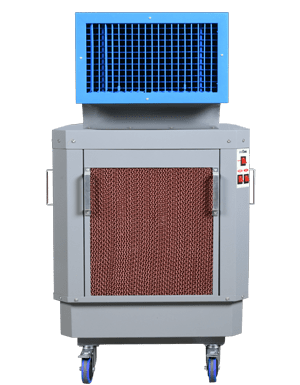

| Model | ATD - 10K | |
| Body Material | Special Pre-plasticsized coated galvanished steel | |
| Minimum Evaporation Efficiency (%) | 80 | |
| Pad Surface Area (m2) | 0.85 | |
| Pad Thickness (mm) | 60 | |
| Connection Load (kw) | 0.19 | |
| Power Supply | 230/1Ph/50Hz | |
| Overall Dimensions (L x W x H) (mm) | 650x650x1200 | |
| All Discharge Grill Size (mm) | 440 x 240 | |
| Fan Type | Axial | |
| Tank Capacity (Liter) | 60 | |
| Dry Weight* (Kgs) | 62 | |
| * Industrial long life construction (heavy duty) | ||
| Design Guide- SI Units | |
| Model | ATD - 10K |
| Air Flow (CMH) | 2500 |
| Cooling Space/Area (Sq.Ft.) | 800 |
| Throw (meter) | 16 |
|
|
||

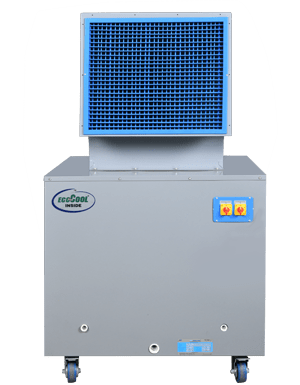

| Model | ATD - 20K | |
| Body Material | Special Pre-plasticsized coated galvanished steel | |
| Minimum Evaporation Efficiency (%) | 90 | |
| Pad Surface Area (m2) | 1.56 | |
| Pad Thickness (mm) | 100 | |
| Connection Load (kw) | 0.79 | |
| Power Supply | 230/1Ph/50Hz | |
| Overall Dimensions (L x W x H) (mm) | 1150x1150x1450 | |
| All Discharge Grill Size (mm) | 600 x 500 | |
| Fan Type | Centrifugal DIDW (Double inlet Double Width) | |
| Tank Capacity (Liter) | 110 | |
| Dry Weight* (Kgs) | 165 | |
| * Industrial long life construction (heavy duty) | ||
| Design Guide- SI Units | |
| Model | ATD - 20K |
| Air Flow (CMH) | 8000 |
| Cooling Space/Area (Sq.Ft.) | 3000 |
| Throw (meter) | 37 |
|
|
||

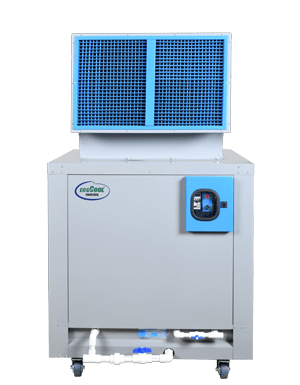

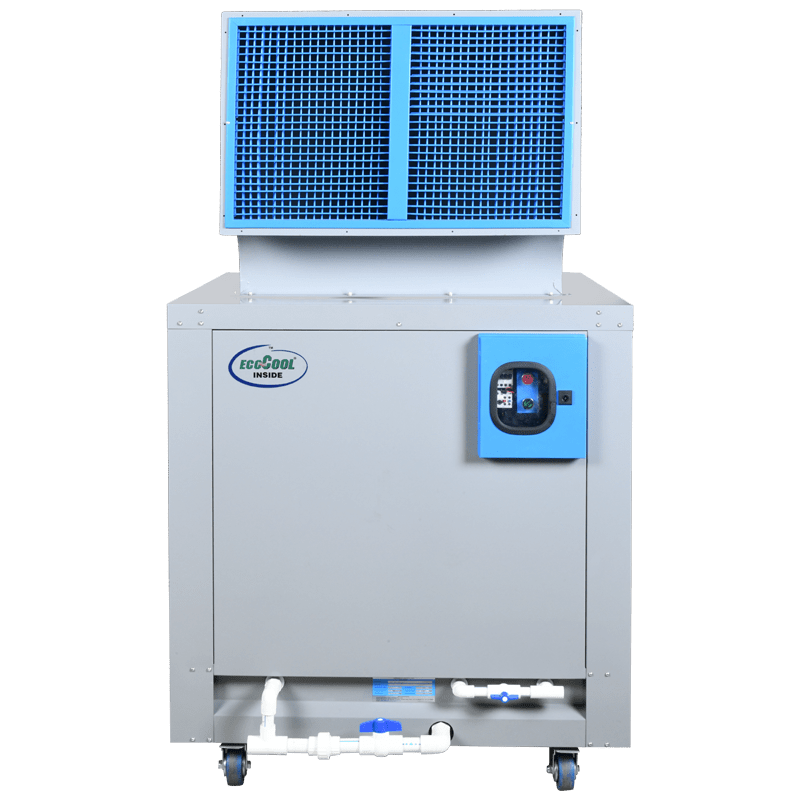

| Model | ATD - 25K | |
| Body Material | Special Pre-plasticsized coated galvanished steel | |
| Minimum Evaporation Efficiency (%) | 90 | |
| Pad Surface Area (m2) | 2.17 | |
| Pad Thickness (mm) | 100 | |
| Connection Load (kw) | 1.55 | |
| Power Supply | 415/3Ph/50Hz | |
| Overall Dimensions (L x W x H) (mm) | 1150x1150x1650 | |
| All Discharge Grill Size (mm) | 800 x 500 | |
| Fan Type | Centrifugal DIDW (Double inlet Double Width) | |
| Tank Capacity (Liter) | 110 | |
| Dry Weight* (Kgs) | 325 | |
| * Industrial long life construction (heavy duty) | ||
| Design Guide- SI Units | |
| Model | ATD - 25K |
| Air Flow (CMH) | 11000 |
| Cooling Space/Area (Sq.Ft.) | 3500 |
| Throw (meter) | 42 |
|
|
||

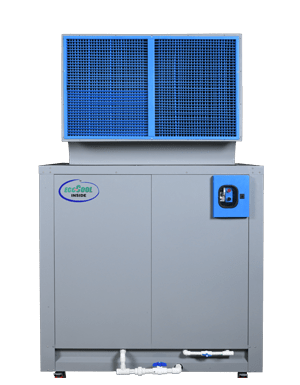

| Model | ATD - 35K | |
| Body Material | Special Pre-plasticsized coated galvanished steel | |
| Minimum Evaporation Efficiency (%) | 90 | |
| Pad Surface Area (m2) | 3.74 | |
| Pad Thickness (mm) | 100 | |
| Connection Load (kw) | 3.88 | |
| Power Supply | 415/3Ph/50Hz | |
| Overall Dimensions (L x W x H) (mm) | 1450x1550x2150 | |
| All Discharge Grill Size (mm) | 1000 x 600 | |
| Fan Type | Centrifugal DIDW (Double inlet Double Width) | |
| Tank Capacity (Liter) | 190 | |
| Dry Weight* (Kgs) | 595 | |
| * Industrial long life construction (heavy duty) | ||
| Design Guide- SI Units | |
| Model | ATD - 35K |
| Air Flow (CMH) | 26000 |
| Cooling Space/Area (Sq.Ft.) | 5000 |
| Throw (meter) | 60 |
Frequently Asked Questions
A free flow top discharge air cooler is an evaporative cooling system designed to deliver cooled air vertically through a top outlet. It is suitable for spot cooling in industrial and commercial spaces.
A top discharge air cooler draws warm air through evaporative cooling pads, reduces its temperature through water evaporation, and distributes the cooled air upward through the top outlet.
A ductless air cooler delivers cooled air directly into the required area without permanent ductwork. This makes it suitable for flexible cooling applications where conventional air-conditioning systems may not be practical.
It can be used in factories, workshops, warehouses, production areas, commercial facilities, and other well-ventilated spaces where localized cooling is required.
Yes. Its focused air discharge makes it suitable for cooling specific workstations, production areas, machinery zones, and other areas that require targeted cooling.
No. The free-flow design can distribute cooled air directly into the surrounding space, providing greater installation flexibility compared with ducted cooling systems.
Consider the required airflow, cooling coverage, air throw, space size, ventilation, power consumption, and operating conditions before selecting an evaporative cooling system.
