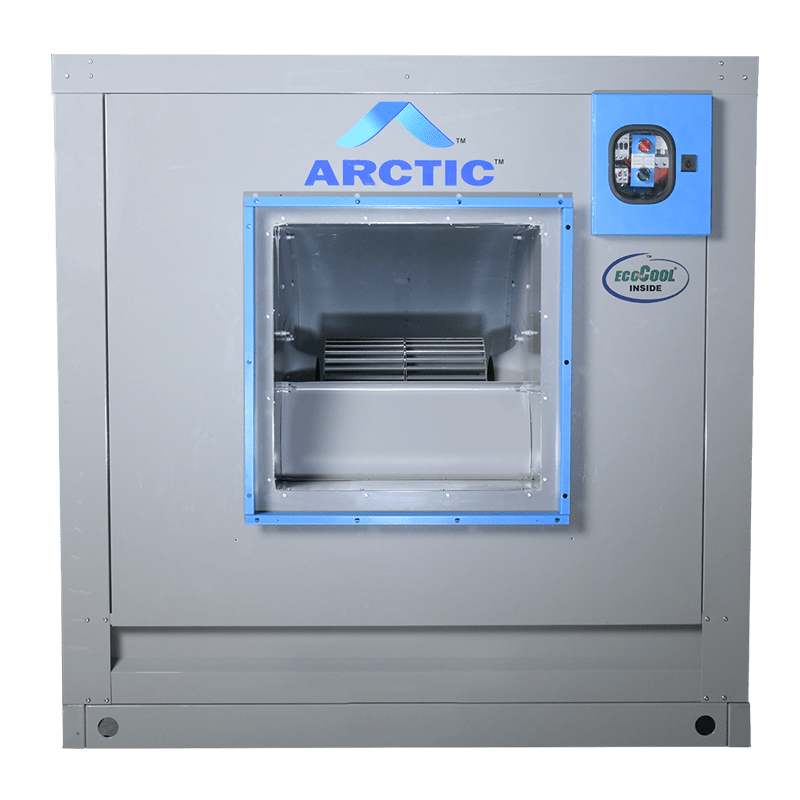

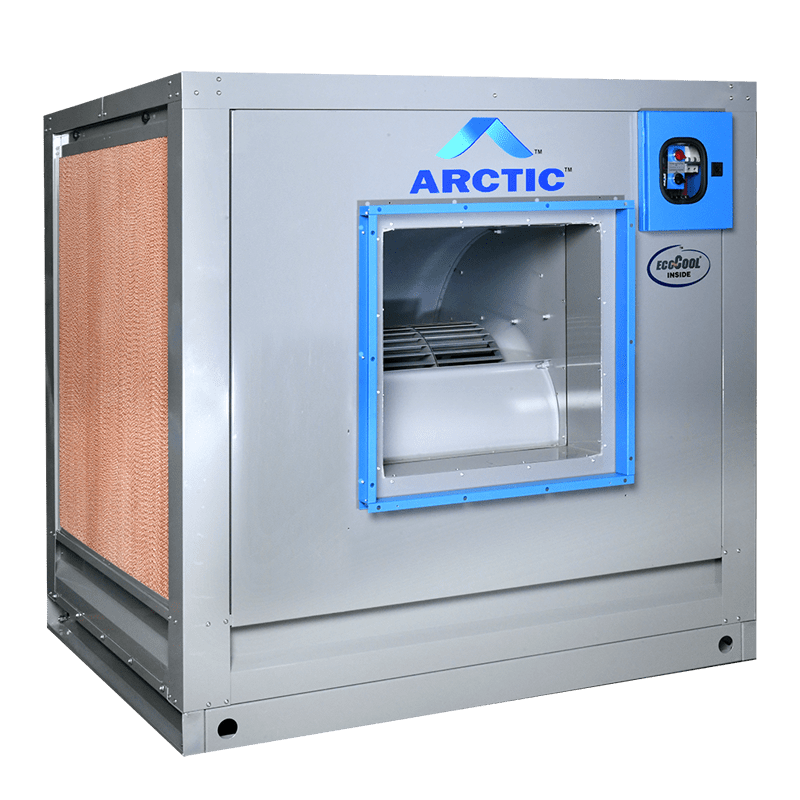

Direct/Ducted Evaporative Coolers
World's Best Performing Evaporative Air Coolers
Arctic Direct Evaporative Coolers are the best in the world. These robust strong body coolers are ideal for central cooling using ducts across applications. The range uses a centrifugal fan, specially designed cooling pads and unique design features coming from decades of engineering knowledge. The range offers excellent cooling and air delivery.
Arctic Direct/Ducted Evaporative Coolers can lower the fresh air dry bulb temperature by 7-12°C, e.g.- the air-off temperature from the evaporative cooler for an outside temperature of 40-43°C can be as low as 28-30°C.
Reduction of temperature & fresh air in the workplace create a healthy environment and benefits like improved staff morale, increased productivity & accuracy and less absenteeism.
Features
World's Best Performing Evaporative Air Coolers with highest cooling efficiency.
Built with high static pressure for comprehensive area coverage through long ducts and numerous grill for better air management..
AMCA Certified DIDW Blowers.
Most robust, rustproof metal body with heavy duty pre-coated GSS.
Proudly made in India at our world-class manufacturing plant.
Branded Spares used for its manufacturing for an easy repair or replacement.
Special Pre-plasticsized coated galvanised steel
Centrifugal DIDW
Benefits
An environment-friendly air cooling solution
Specifically designed for the cooling of large industrial and commercial spaces.
Trusted brand & innovative Technology.
Wide Range of models available to cool large areas economically Works well in harsh outdoor conditions, installation or usage.
Easy to install at the site No assembly required, no trial & error for motors
Long, trouble-free life compared to cheap imported plastic body coolers.
Duct designing expertise provided by the company.
Ideal for
Maintaining Human Comfort, Heat Removal, Process needs, Increasing work efficiency & accuracy, Open spaces & Large areas.
Offices
Schools
Multiplexes
Commercial Complexes
Restaurant
Company Canteens & Kitchens
Shopping Malls
Banquets
Marriage Halls
Gymnasiums
Poultry
Green House & Nursery
Textile Mills
Plastic Printing & Packaging Industry
General Manufacturing facilities
Tea Factories
Ideal for
Maintaining Human Comfort, Heat Removal, Process needs, Increasing work efficiency & accuracy, Open spaces & Large areas.
Commercial Facilities
- Offices, Schools, multiplexes & Commercial Complexes.
- Restaurant, Company canteens & Kitchens
- Shopping Malls, Banquets, Marriage Halls
- Gymnasiums
- Residential Buildings
- Paultry
- Green House & Nursery
Industrial Facilities
- Textile Mills
- Automotive Industry
- Plastic Printing & Packaging Industry
- General Manufacturing facilities
- Tea Factories
- Workshops & Warehouses

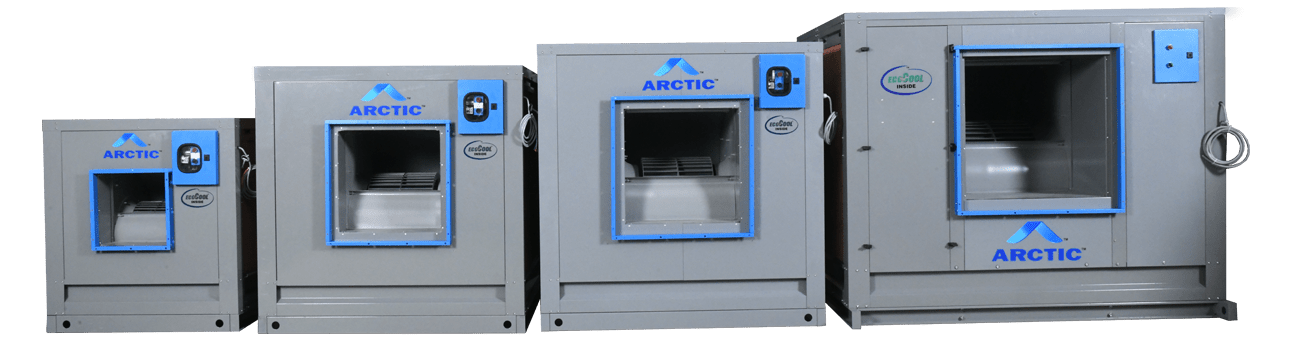

Range of Products
Largest range of ARCTIC standard ducted coolers - from 8000 CMH to 120000 CMH. They are Heavy-duty metal coolers with the highest efficiency & unique three side pad design & blowers for the most powerful air throw. with EcoCool Pads, Prefilters & inbuilt control panel - ARCTIC coolers are the world's best performing evaporative air coolers.

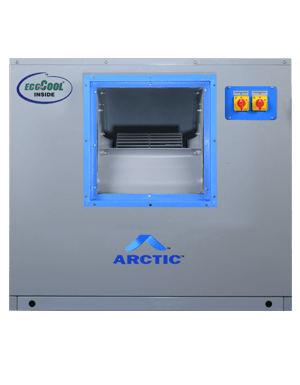

Arctic Discharge Cooler ADC – 20K |

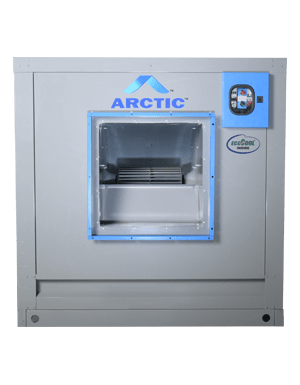

Arctic Discharge Cooler ADC – 25K |
Arctic Discharge Cooler ADC – 35K |
Arctic Discharge Cooler ADC – 45K |
||
| Description | UOM | ADC – 20K | ADC – 25K | ADC – 35K | ADC – 45K |
| Minimum Evaporation Efficiency | % | 90 | 90 | 90 | 90 |

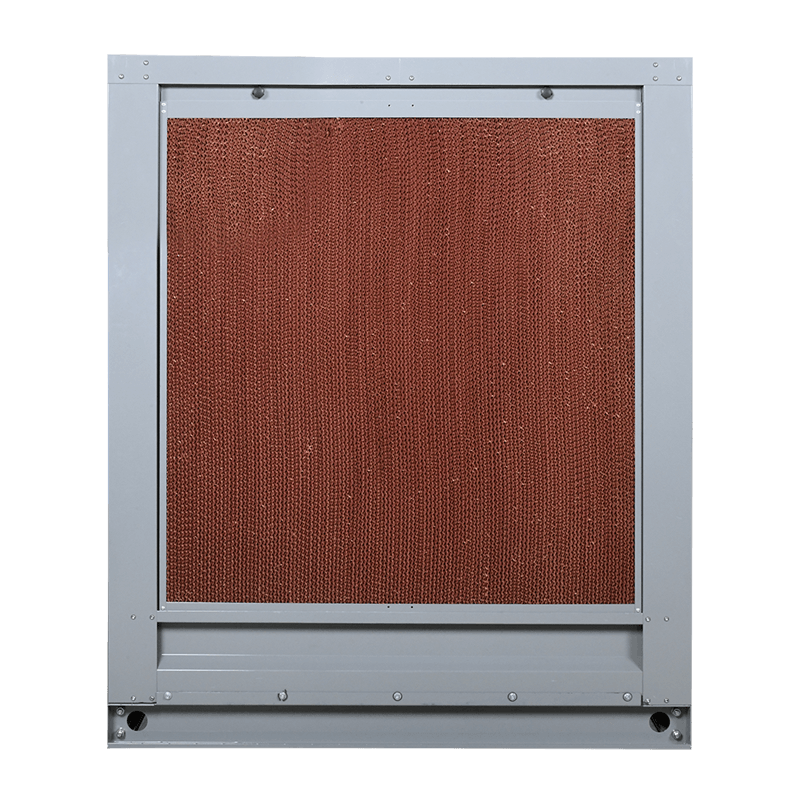

| Pad Surface Area | m2 | 1.56 | 2.17 | 3.74 | 6.06 |
| Pad Thickness | mm | 100 | 100 | 100 | 100 |
| Connection Load | kw | 0.79 | 1.55 | 3.88 | 5.87 |
| Power Supply | 230/1Ph/50Hz | 415/3Ph/50Hz | 415/3Ph/50Hz | 415/3Ph/50Hz | |
| Overall Dimensions (L x W x H) | mm | 1100x1100x850 | 1100x1100x1100 | 1250x1500x1400 | 1750x2150x1650 |
| Duct Connection Size | mm | 400 x 400 | 400 x 400 | 650 x 650 | 900 x 900 |
| Tank Capacity | Liter | 110 | 110 | 190 | 475 |
| Dry Weight* | Kgs | 165 | 200 | 295 | 565 |
| Design Guide- SI Units | |||||
| Air Flow at given ESP | m3/h | 8000 | 11000 | 26000 | 45000 |
| Static Pressure | mmWC | 19 | 22 | 22 | 22 |
| External Static Pressure | mmWC | 5 | 10 | 10 | 10 |
| Air Flow at below ESP | m3/h | 5100 | 6800 | 15300 | 25500 |
| Static Pressure | mmWC | 22.5 | 32 | 32 | 40 |
| External Static Pressure | mmWC | 10 | 20 | 20 | 30 |
Arctic Discharge Cooler ADC – 85K |
Arctic Discharge Cooler ADC – 100K |

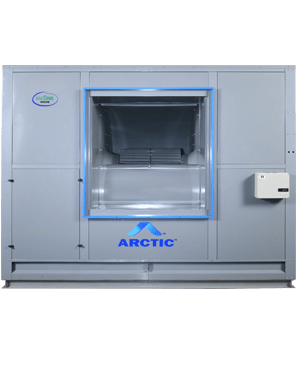

Arctic Discharge Cooler ADC – 125K |
|||
| Description | UOM | ADC – 85K | ADC – 100K | ADC – 125K | |
| Minimum Evaporation Efficiency | % | 90 | 90 | 90 | |
| Pad Surface Area | m2 | 9.08 | 13.88 | 13.88 | |
| Pad Thickness | mm | 100 | 100 | 100 | |
| Connection Load | kw | 9.67 | 10.05 | 15.75 | |
| Power Supply | 230/1Ph/50Hz | 415/3Ph/50Hz | 415/3Ph/50Hz | ||
| Overall Dimensions (L x W x H) | mm | 2300x2400x1850 | 2300x3300x2400 | 2300x3300x2400 | |
| Duct Connection Size | mm | 1100×1100 | 1250×1250 | 1400×1400 | |
| Tank Capacity | Liter | 715 | 1000 | 1000 | |
| Dry Weight* | Kgs | 790 | 910 | 1010 | |
| Design Guide- SI Units | |||||
| Air Flow at given ESP | m3/h | 75000 | 90000 | 120000 | |
| Static Pressure | mmWC | 22 | 22 | 22 | |
| External Static Pressure | mmWC | 10 | 10 | 10 | |
| Air Flow at below ESP | m3/h | 42500 | 51000 | 68000 | |
| Static Pressure | mmWC | 40 | 40 | 40 | |
| External Static Pressure | mmWC | 30 | 30 | 30 | |
|
|
|
|
|
|
|
|
|
| Modal | ADC - 20K | ADC - 25K | ADC - 35K | ADC - 45K | ADC - 85K | ADC - 100K | ADC - 125K |
| Body Material | Special Pre-plasticsized coated galvanished steel | ||||||
| Minimum Evaporation Efficiency (%) | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| Pad Surface Area (m2) | 1.56 | 2.17 | 3.74 | 6.06 | 9.08 | 13.88 | 13.88 |
| Pad Thickness (mm) | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Connection Load (kw) | 0.79 | 1.55 | 3.88 | 5.87 | 9.67 | 10.05 | 15.75 |
| Power Supply | 230/1Ph/50Hz | 415/3Ph/50Hz | |||||
| Overall Dimensions (L x W x H) (mm) | 1150x1150x950 | 1150x1150x1150 | 1450x1550x1450 | 1750x2350x1750 | 2150x2400x2150 | 2150x2400x2150 | 2300x3300x2500 |
| Duct Connection Size (mm) | 400 x 400 | 400 x 400 | 650 x 650 | 900 x 900 | 1100 x 1100 | 1250 x 1250 | 1400 x 1400 |
| Fan Type | Centrifugal DIDW (Double inlet Double Width) | ||||||
| Tank Capacity (Liter) | 110 | 110 | 190 | 475 | 715 | 1000 | 1000 |
| Dry Weight* (Kgs) | 165 | 200 | 295 | 565 | 790 | 910 | 1010 |
| * Industrial long life construction (heavy duty) | |||||||
| Design Guide- SI Units | |||||
| Model | Air Flow at given ESP (m3/h) | External Static Pressure (mmWC) | Air Flow at below ESP | External Static Pressure (mmWC) | |
| ADC - 20K | 8000 | 5 | 5100 | 10 | |
| ADC - 25K | 11000 | 10 | 6800 | 20 | |
| ADC - 35K | 26000 | 10 | 15300 | 20 | |
| ADC - 45K | 45000 | 10 | 25500 | 30 | |
| ADC-L-85K | 75000 | 10 | 42500 | 30 | |
| ADC-L-100K | 90000 | 10 | 51000 | 30 | |
| ADC-L-125K | 120000 | 10 | 68000 | 30 | |
|
|
||
| Model | ADC - 20K | |
| Body Material | Special Pre-plasticsized coated galvanished steel | |
| Minimum Evaporation Efficiency (%) | 90 | |
| Pad Surface Area (m2) | 1.56 | |
| Pad Thickness (mm) | 100 | |
| Connection Load (kw) | 0.79 | |
| Power Supply | 230/1Ph/50Hz | |
| Overall Dimensions (L x W x H) (mm) | 1150x1150x950 | |
| Duct Connection Size (mm) | 400 x 400 | |
| Fan Type | Centrifugal DIDW (Double inlet Double Width) | |
| Tank Capacity (Liter) | 110 | |
| Dry Weight* (Kgs) | 165 | |
| * Industrial long life construction (heavy duty) | ||
| Design Guide- SI Units | |
| Model | ADC - 20K |
| Air Flow at given ESP (m3/h) | 8000 |
| External Static Pressure (mmWC) | 5 |
| Air Flow at below ESP | 5100 |
| External Static Pressure (mmWC) | 10 |
|
|
||
| Model | ADC - 25K | |
| Body Material | Special Pre-plasticsized coated galvanished steel | |
| Minimum Evaporation Efficiency (%) | 90 | |
| Pad Surface Area (m2) | 2.17 | |
| Pad Thickness (mm) | 100 | |
| Connection Load (kw) | 1.55 | |
| Power Supply | 415/3Ph/50Hz | |
| Overall Dimensions (L x W x H) (mm) | 1150x1150x1150 | |
| Duct Connection Size (mm) | 400 x 400 | |
| Fan Type | Centrifugal DIDW (Double inlet Double Width) | |
| Tank Capacity (Liter) | 110 | |
| Dry Weight* (Kgs) | 200 | |
| * Industrial long life construction (heavy duty) | ||
| Design Guide- SI Units | |
| Model | ADC - 25K |
| Air Flow at given ESP (m3/h) | 11000 |
| External Static Pressure (mmWC) | 10 |
| Air Flow at below ESP | 6800 |
| External Static Pressure (mmWC) | 20 |
|
|
||
| Model | ADC - 35K | |
| Body Material | Special Pre-plasticsized coated galvanished steel | |
| Minimum Evaporation Efficiency (%) | 90 | |
| Pad Surface Area (m2) | 3.74 | |
| Pad Thickness (mm) | 100 | |
| Connection Load (kw) | 3.88 | |
| Power Supply | 415/3Ph/50Hz | |
| Overall Dimensions (L x W x H) (mm) | 1450x1550x1450 | |
| Duct Connection Size (mm) | 650 x 650 | |
| Fan Type | Centrifugal DIDW (Double inlet Double Width) | |
| Tank Capacity (Liter) | 190 | |
| Dry Weight* (Kgs) | 295 | |
| * Industrial long life construction (heavy duty) | ||
| Design Guide- SI Units | |
| Model | ADC - 35K |
| Air Flow at given ESP (m3/h) | 26000 |
| External Static Pressure (mmWC) | 10 |
| Air Flow at below ESP | 15300 |
| External Static Pressure (mmWC) | 20 |
|
|
||

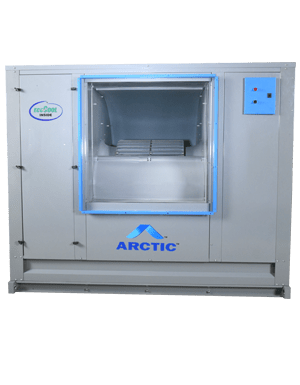

| Model | ADC - 45K | |
| Body Material | Special Pre-plasticsized coated galvanished steel | |
| Minimum Evaporation Efficiency (%) | 90 | |
| Pad Surface Area (m2) | 6.06 | |
| Pad Thickness (mm) | 100 | |
| Connection Load (kw) | 5.87 | |
| Power Supply | 415/3Ph/50Hz | |
| Overall Dimensions (L x W x H) (mm) | 1750x2350x1750 | |
| Duct Connection Size (mm) | 900 x 900 | |
| Fan Type | Centrifugal DIDW (Double inlet Double Width) | |
| Tank Capacity (Liter) | 475 | |
| Dry Weight* (Kgs) | 565 | |
| * Industrial long life construction (heavy duty) | ||
| Design Guide- SI Units | |
| Model | ADC - 45K |
| Air Flow at given ESP (m3/h) | 45000 |
| External Static Pressure (mmWC) | 10 |
| Air Flow at below ESP | 25500 |
| External Static Pressure (mmWC) | 30 |
|
|
||

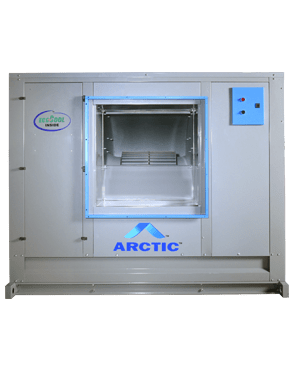

| Model | ADC-L-85K | |
| Body Material | Special Pre-plasticsized coated galvanished steel | |
| Minimum Evaporation Efficiency (%) | 90 | |
| Pad Surface Area (m2) | 9.08 | |
| Pad Thickness (mm) | 100 | |
| Connection Load (kw) | 9.67 | |
| Power Supply | 415/3Ph/50Hz | |
| Overall Dimensions (L x W x H) (mm) | 2150x2400x2150 | |
| Duct Connection Size (mm) | 1100 x 1100 | |
| Fan Type | Centrifugal DIDW (Double inlet Double Width) | |
| Tank Capacity (Liter) | 715 | |
| Dry Weight* (Kgs) | 790 | |
| * Industrial long life construction (heavy duty) | ||
| Design Guide- SI Units | |
| Model | ADC-L-85K |
| Air Flow at given ESP (m3/h) | 75000 |
| External Static Pressure (mmWC) | 10 |
| Air Flow at below ESP | 42500 |
| External Static Pressure (mmWC) | 30 |
|
|
||
| Model | ADC-L-100K | |
| Body Material | Special Pre-plasticsized coated galvanished steel | |
| Minimum Evaporation Efficiency (%) | 90 | |
| Pad Surface Area (m2) | 13.88 | |
| Pad Thickness (mm) | 100 | |
| Connection Load (kw) | 11.75 | |
| Power Supply | 415/3Ph/50Hz | |
| Overall Dimensions (L x W x H) (mm) | 2150x2400x2150 | |
| Duct Connection Size (mm) | 1250 x 1250 | |
| Fan Type | Centrifugal DIDW (Double inlet Double Width) | |
| Tank Capacity (Liter) | 1000 | |
| Dry Weight* (Kgs) | 910 | |
| * Industrial long life construction (heavy duty) | ||
| Design Guide- SI Units | |
| Model | ADC-L-100K |
| Air Flow at given ESP (m3/h) | 90000 |
| External Static Pressure (mmWC) | 10 |
| Air Flow at below ESP | 51000 |
| External Static Pressure (mmWC) | 30 |
|
|
||
| Model | ADC-L-125K | |
| Body Material | Special Pre-plasticsized coated galvanished steel | |
| Minimum Evaporation Efficiency (%) | 90 | |
| Pad Surface Area (m2) | 13.88 | |
| Pad Thickness (mm) | 100 | |
| Connection Load (kw) | 15.75 | |
| Power Supply | 415/3Ph/50Hz | |
| Overall Dimensions (L x W x H) (mm) | 2300x3300x2500 | |
| Duct Connection Size (mm) | 1400 x 1400 | |
| Fan Type | Centrifugal DIDW (Double inlet Double Width) | |
| Tank Capacity (Liter) | 1000 | |
| Dry Weight* (Kgs) | 1010 | |
| * Industrial long life construction (heavy duty) | ||
| Design Guide- SI Units | |
| Model | ADC-L-125K |
| Air Flow at given ESP (m3/h) | 120000 |
| External Static Pressure (mmWC) | 10 |
| Air Flow at below ESP | 68000 |
| External Static Pressure (mmWC) | 30 |
