Free Flow side discharge Air Cooler
Powerful Side Discharge Free Flow Coolers

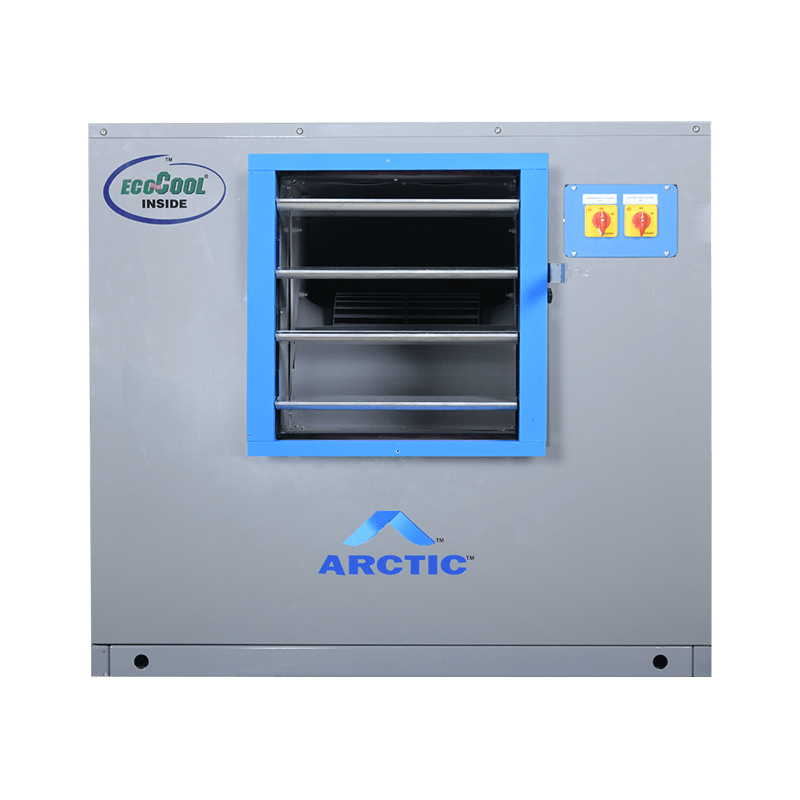

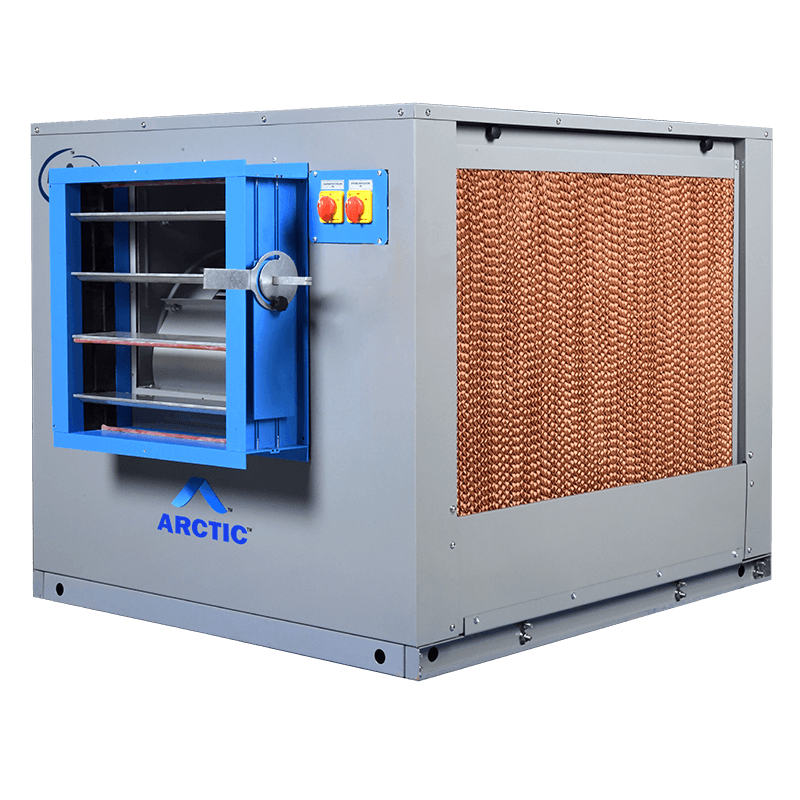

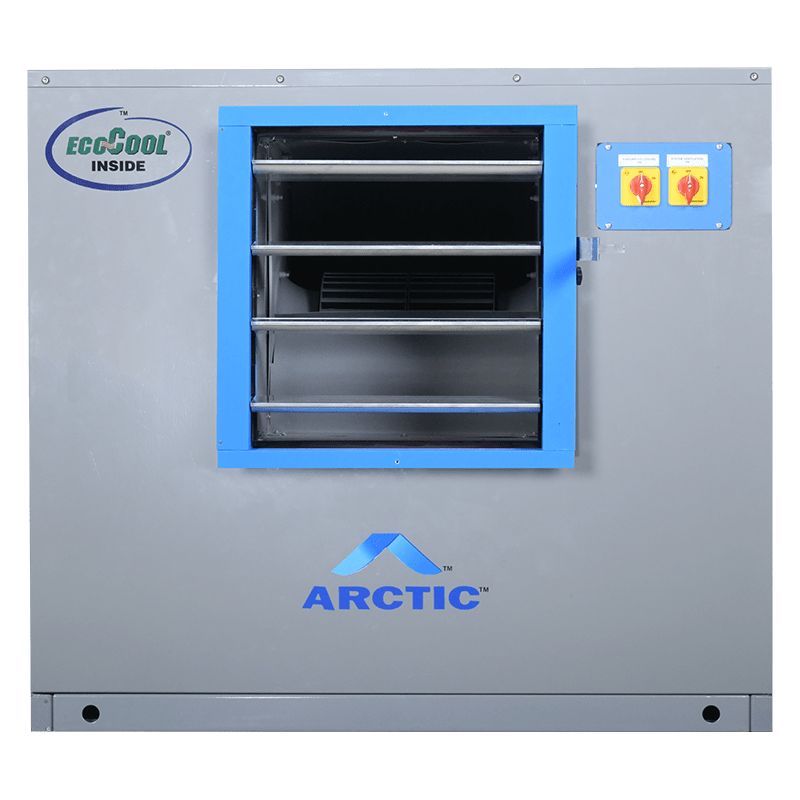

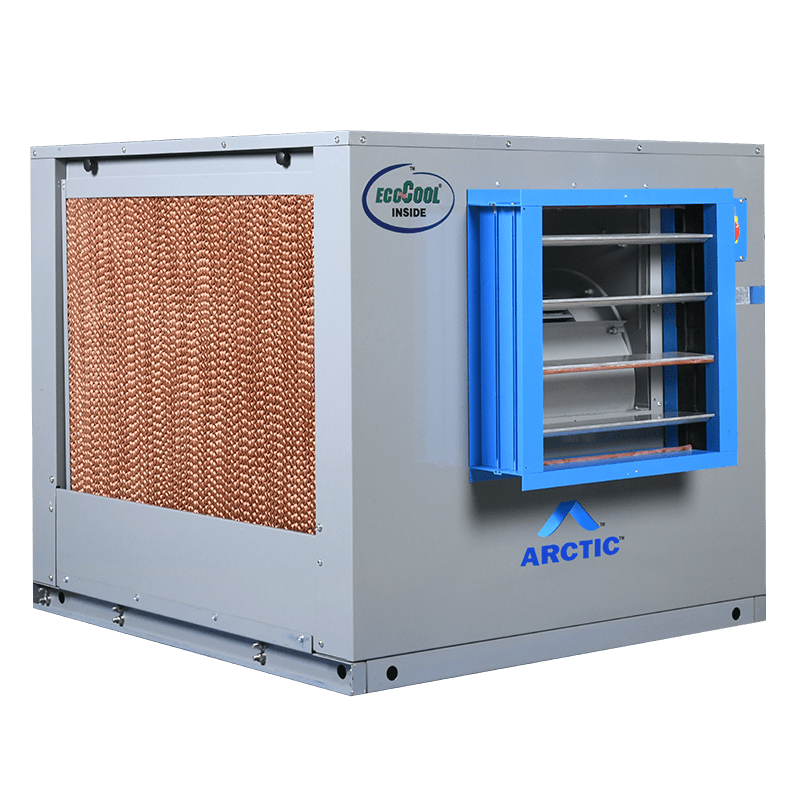

Arctic Side discharge heavy-duty metal-body air coolers are free flow ductless air coolers, ideal for industrial, commercial and open area use. This Arctic Cooler range comes with centrifugal fans for the most powerful air throw. A damper can be used to control the air supply and distance. As the unit is not ducted, its location can also be changed.
Features
Ductless air cooler with damper
Free Flow metal body air cooler
Centrifugal blower for powerful and better air throw

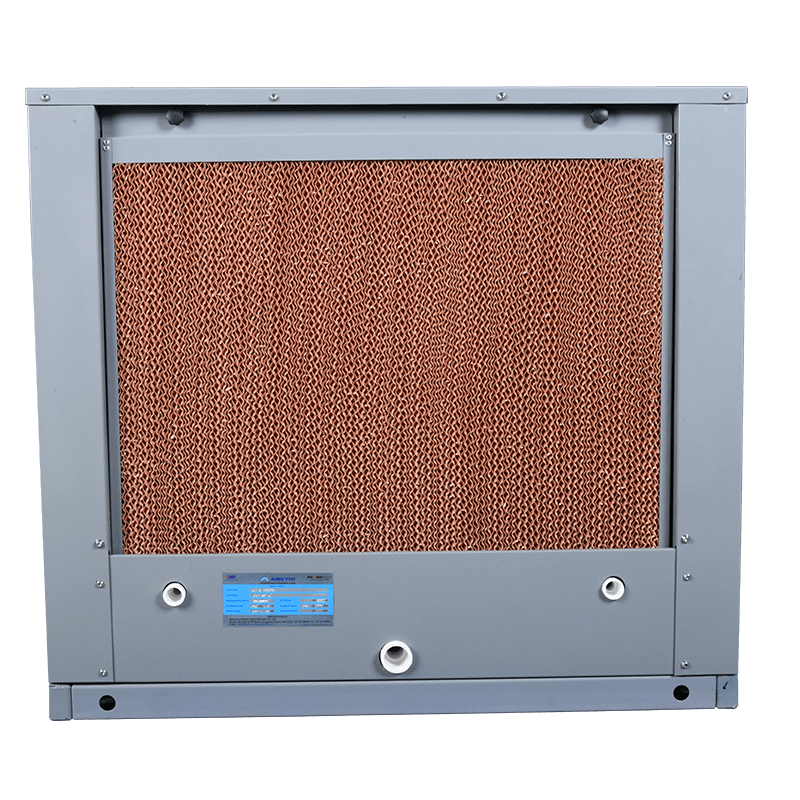

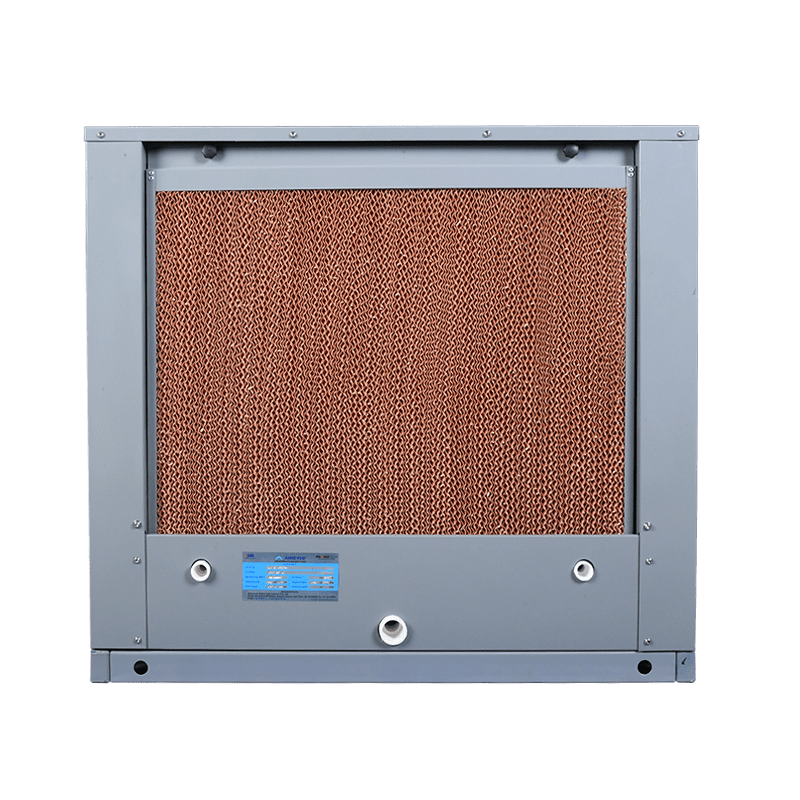

EcoCool Evaporative Cooling Pads Inside
Special Pre-plasticsized coated galvanised steel
Centrifugal DIDW
Benefits
Better air management
Easy to Install - Plug and play
No ducting involved
Long, trouble-free life compared to cheap imported plastic body coolers.
Trusted brand & innovative technology
Ideal for
Offices
Schools
Multiplexes
Commercial Complexes
Restaurant
Company Canteens & Kitchens
Shopping Malls
Banquets
Marriage Halls
Gymnasiums
Poultry
Green House & Nursery
Textile Mills
Plastic Printing & Packaging Industry
General Manufacturing facilities
Tea Factories
Ideal for
There are many variations of passages of Lorem ipsum available, but the majority have suffered alteration in some form, by injected humour, or randomised words.
Commercial Facilities
- Offices, Schools, multiplexes & Commercial Complexes.
- Restaurant, Company canteens & Kitchens
- Shopping Malls, Banquets, Marriage Halls
- Gymnasiums
- Residential Buildings
- Paultry
- Green House & Nursery
Industrial Facilities
- Textile Mills
- Automotive Industry
- Plastic Printing & Packaging Industry
- General Manufacturing facilities
- Tea Factories
- Workshops & Warehouses
Range of Products
 |
 |
 |
|
| Model | ASD - 20K | ASD - 25K | ASD - 35K |
| Body Material | Special Pre-plasticsized coated galvanished steel | ||
| Minimum Evaporation Efficiency (%) | 90 | 90 | 90 |
| Pad Surface Area (m2) | 1.56 | 2.17 | 3.74 |
| Pad Thickness (mm) | 100 | 100 | 100 |
| Connection Load (kw) | 0.79 | 1.55 | 3.88 |
| Power Supply | 230/1Ph/50Hz | 415/3Ph/50Hz | |
| Overall Dimensions (L x W x H) (mm) | 1150x1150x950 | 1150x1150x1150 | 1450x1550x1450 |
| All Discharge Size (mm) | 400 x 400 | 400 x 400 | 650 x 650 |
| Fan Type | Centrifugal DIDW (Double inlet Double Width) | ||
| Tank Capacity (Liter) | 110 | 110 | 190 |
| Dry Weight* (Kgs) | 170 | 205 | 300 |
| * Industrial long life construction (heavy duty) | |||
| Design Guide- SI Units | |||||
| Model | Air Flow (CMH) | Cooling Space/Area (Sq.Ft.) | Throw (meter) | ||
| ASD - 20K | 8000 | 3500 | 43 | ||
| ASD - 25K | 11000 | 4100 | 50 | ||
| ASD - 35K | 26000 | 6600 | 67 | ||
|
|
||

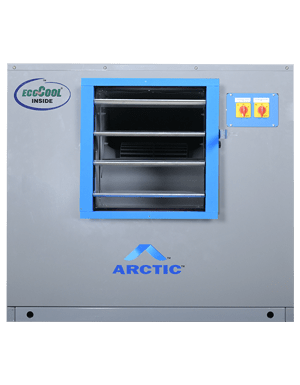

| Model | ASD - 20K | |
| Body Material | Special Pre-plasticsized coated galvanished steel | |
| Minimum Evaporation Efficiency (%) | 90 | |
| Pad Surface Area (m2) | 1.56 | |
| Pad Thickness (mm) | 100 | |
| Connection Load (kw) | 0.79 | |
| Power Supply | 230/1Ph/50Hz | |
| Overall Dimensions (L x W x H) (mm) | 1100x1100x850 | |
| All Discharge Size (mm) | 400 x 400 | |
| Fan Type | Centrifugal DIDW (Double inlet Double Width) | |
| Tank Capacity (Liter) | 110 | |
| Dry Weight* (Kgs) | 170 | |
| * Industrial long life construction (heavy duty) | ||
| Design Guide- SI Units | |
| Model | ASD - 20K |
| Air Flow (CMH) | 8000 |
| Cooling Space/Area (Sq.Ft.) | 3500 |
| Throw (meter) | 43 |
|
|
||

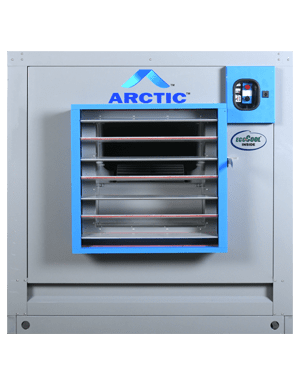

| Model | ASD - 25K | |
| Body Material | Special Pre-plasticsized coated galvanished steel | |
| Minimum Evaporation Efficiency (%) | 90 | |
| Pad Surface Area (m2) | 2.17 | |
| Pad Thickness (mm) | 100 | |
| Connection Load (kw) | 1.55 | |
| Power Supply | 415/3Ph/50Hz | |
| Overall Dimensions (L x W x H) (mm) | 1150x1150x1150 | |
| All Discharge Size (mm) | 400 x 400 | |
| Fan Type | Centrifugal DIDW (Double inlet Double Width) | |
| Tank Capacity (Liter) | 110 | |
| Dry Weight* (Kgs) | 205 | |
| * Industrial long life construction (heavy duty) | ||
| Design Guide- SI Units | |
| Model | ASD - 25K |
| Air Flow (CMH) | 11000 |
| Cooling Space/Area (Sq.Ft.) | 4100 |
| Throw (meter) | 50 |
|
|
||
| Model | ASD - 35K | |
| Body Material | Special Pre-plasticsized coated galvanished steel | |
| Minimum Evaporation Efficiency (%) | 90 | |
| Pad Surface Area (m2) | 3.74 | |
| Pad Thickness (mm) | 100 | |
| Connection Load (kw) | 3.88 | |
| Power Supply | 415/3Ph/50Hz | |
| Overall Dimensions (L x W x H) (mm) | 1450x1550x1450 | |
| All Discharge Size (mm) | 650 x 650 | |
| Fan Type | Centrifugal DIDW (Double inlet Double Width) | |
| Tank Capacity (Liter) | 190 | |
| Dry Weight* (Kgs) | 300 | |
| * Industrial long life construction (heavy duty) | ||
| Design Guide- SI Units | |
| Model | ASD - 35K |
| Air Flow (CMH) | 26000 |
| Cooling Space/Area (Sq.Ft.) | 6600 |
| Throw (meter) | 67 |
Frequently Asked Questions
A side discharge air cooler is an evaporative cooling system that releases cooled air horizontally through a side outlet. It is designed for effective cooling in industrial, commercial, and large open or semi-open spaces.
A side discharge evaporative cooler uses water-soaked cooling pads to cool incoming air through natural evaporation. A fan then distributes the cooled air into the surrounding area.
A Side Discharge Evaporative Air Cooler is suitable for factories, warehouses, workshops, manufacturing facilities, production areas, and other well-ventilated spaces requiring efficient cooling. It is also used in commercial spaces.
Side-discharge cooling provides directional airflow, helping to deliver cooled air toward specific work areas. It can also provide an alternative to conventional air conditioning in suitable large, well-ventilated spaces.
No. The free-flow design distributes cooled air directly into the space, reducing the need for permanent ductwork and providing greater installation flexibility.
